Commercial TPO White Membrane Roof Installation – Passaic NJ

Project Overview

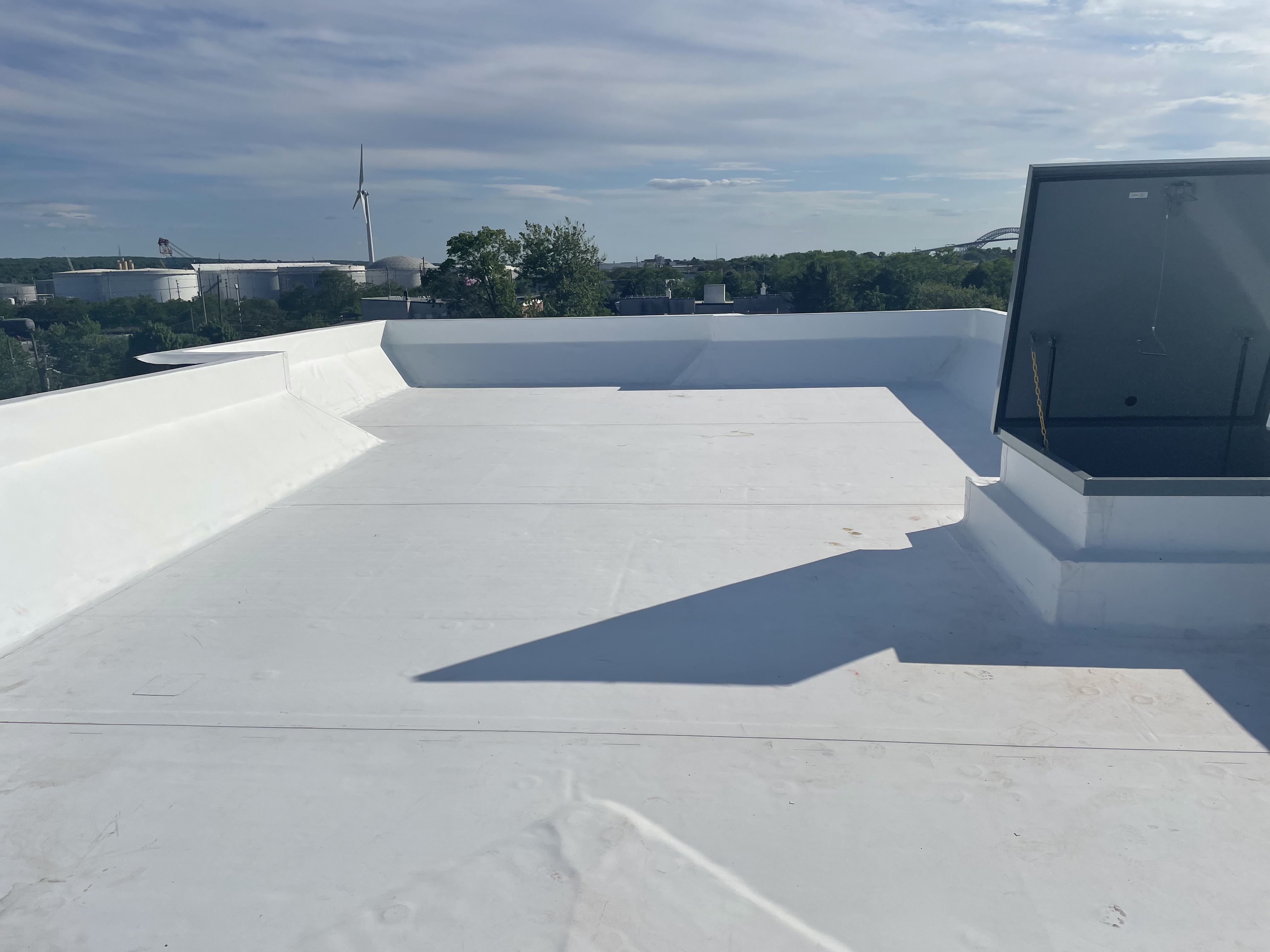

Full commercial TPO white membrane roofing system installed on a multi-level flat roof in Passaic, NJ. The bright white 60-mil TPO membrane provides energy-efficient reflectivity, dramatically reducing cooling costs. All penetrations, HVAC equipment curbs, and parapet walls were fully flashed and detailed to create a completely watertight system.

Analysis

The existing modified bitumen roof had aged beyond its service life with widespread blistering, open seams, and clogged drains causing ponding water. The multi-level roof with numerous HVAC units required careful planning of membrane layout and flashing sequencing. Energy efficiency was a priority, making white reflective TPO the clear choice.

Process

Day 1–2: Tear-off and deck prep. Day 3–4: Insulation installation. Day 5–7: TPO membrane layout, fastening, and heat-welding. Day 8: Penetration details and HVAC flashings. Day 9: Final walk, flood test, punch list.

Outcome

A fully white reflective roof system now covers the building, expected to reduce cooling energy by 15–20%. Clean seamless surface eliminates all previous leak sources. 20-year Firestone manufacturer warranty and comprehensive Duraproof commercial warranty.

Project Details

Materials Used

Firestone UltraPly TPO 60-mil white membrane, ISO rigid insulation board, mechanically fastened batten strips, stainless steel fasteners and plates, aluminum termination bar, TPO walkway pads, pipe boot flashings, HVAC curb wrap

Methods & Techniques

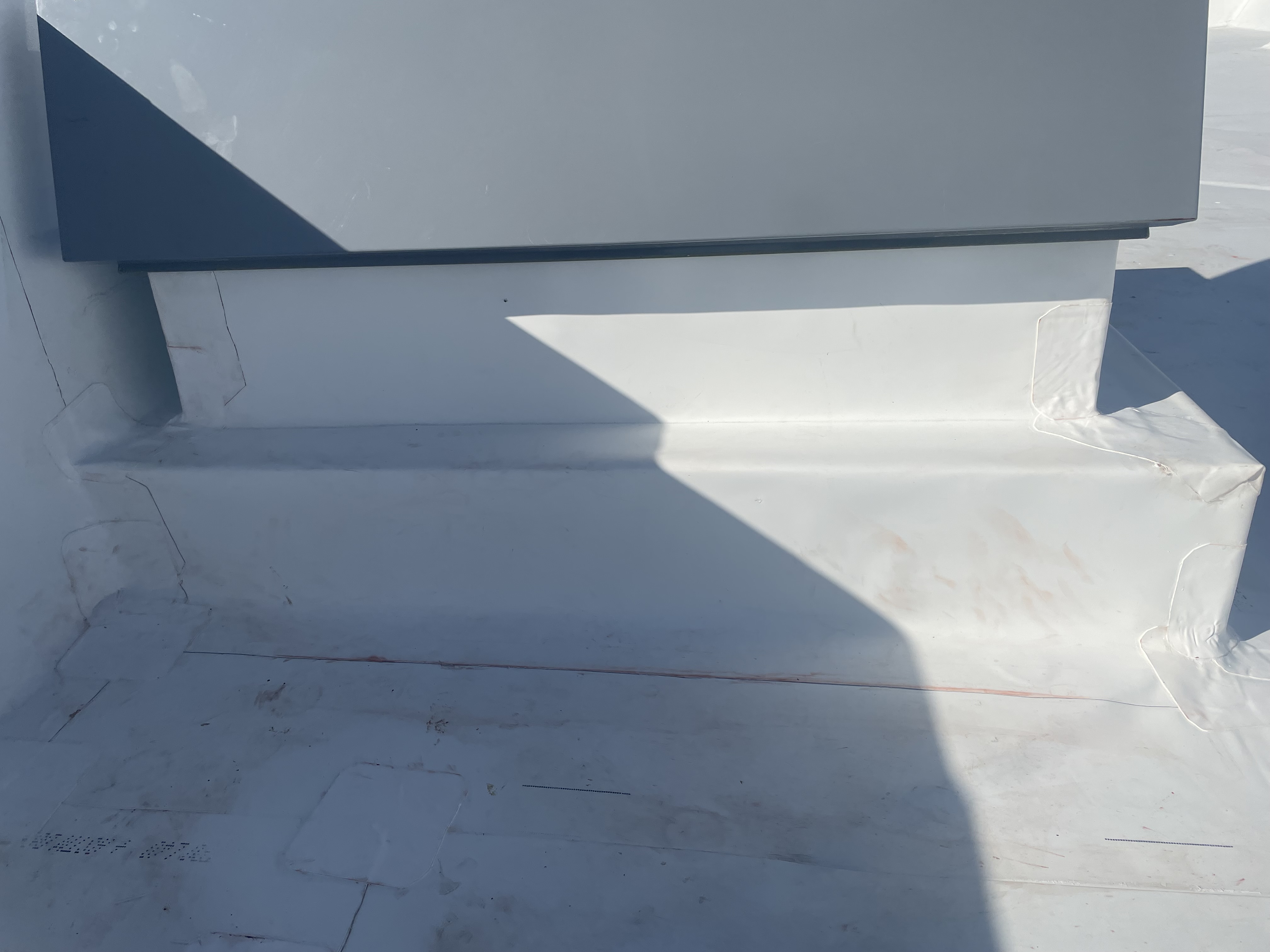

Existing roof removed down to structural deck. Deck inspected and soft spots repaired. ISO insulation boards installed mechanically. TPO membrane rolled out, mechanically fastened at field, fully adhered at edges and penetrations. All seams heat-welded to minimum 1.5" weld width. HVAC curbs wrapped and flashed. Drains cleaned and fitted with new clamping rings.

Key Highlights

White reflective TPO for energy savings | Multi-level roof with full HVAC detailing | Heat-welded seams throughout | 9-day commercial install | 20-year Firestone warranty
